Sivesa
Sonora
AGUA PRIETA

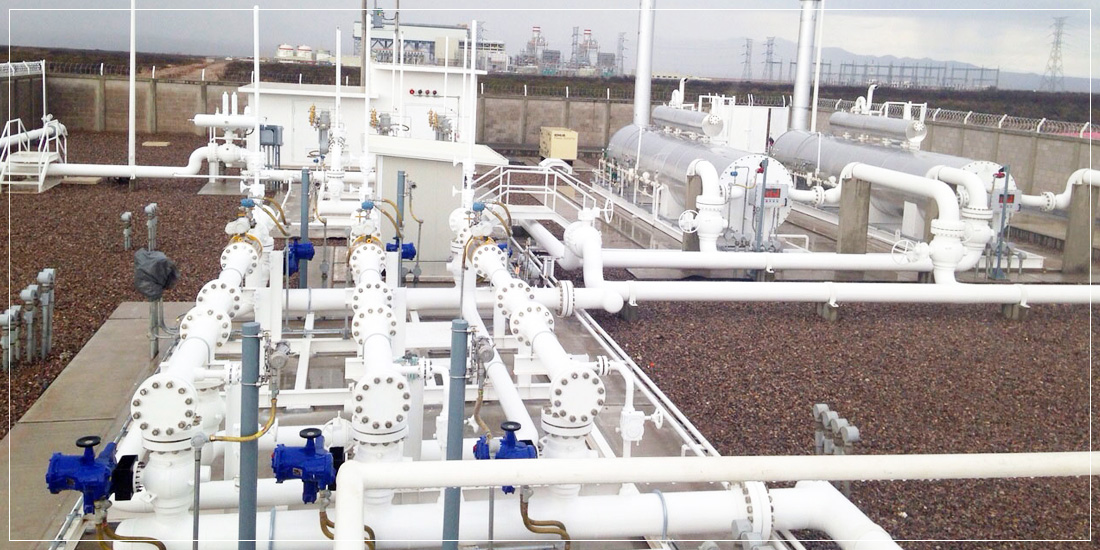

Project's Description
• Max flow: 106,188.1747 m3/hr
• Pin: 55.15 Bar
• Pout: 39.30 Bar
• Din: 12” ANSI 600
• Dout: 12” ANSI 600
• Regulators: BECKER DN: 6” ANSI 600 (Qty:6)
• ELSTER ultrasonic meter DN: 8” ANSI 600 (Qty:3)
• Filter: Coalescente (IEFSA) 12” ANSI 600 (Qty: 2)
• indirect heaters: 8” ANSI 600 (Qty: 2)
• Motorized Valves: 8” ANSI 600 (Qty: 6)
• Gas/oil valves: 12” ANSI 600 (Qty: 2)
• Chromatography System and Analyzers
• Detection and alarm system
